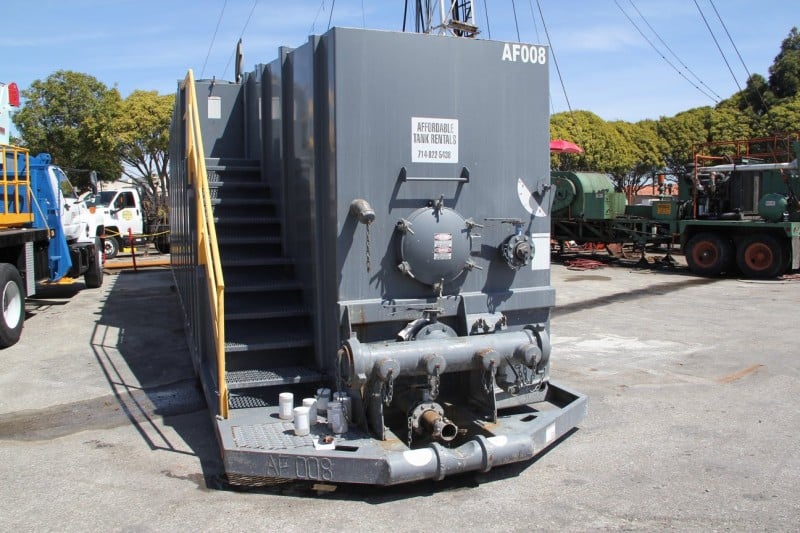

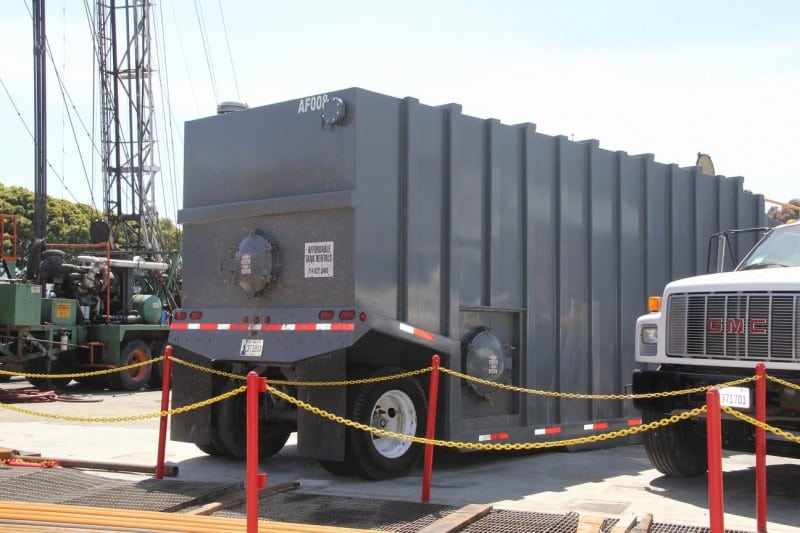

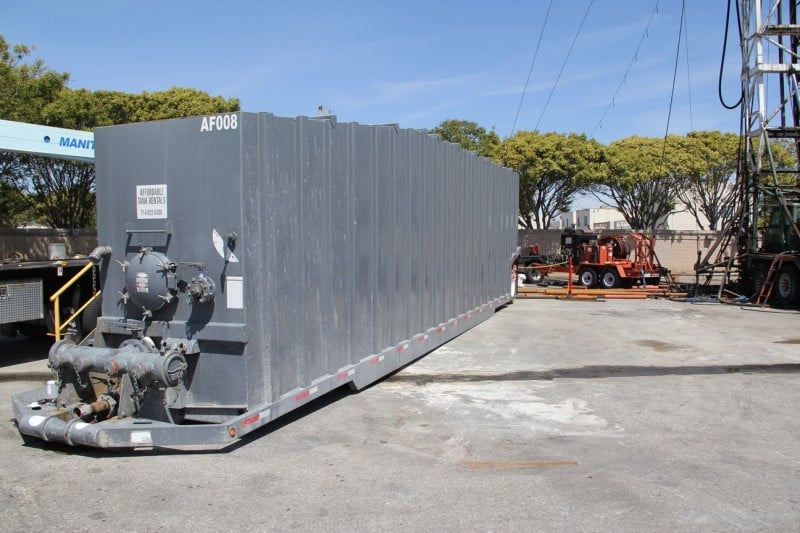

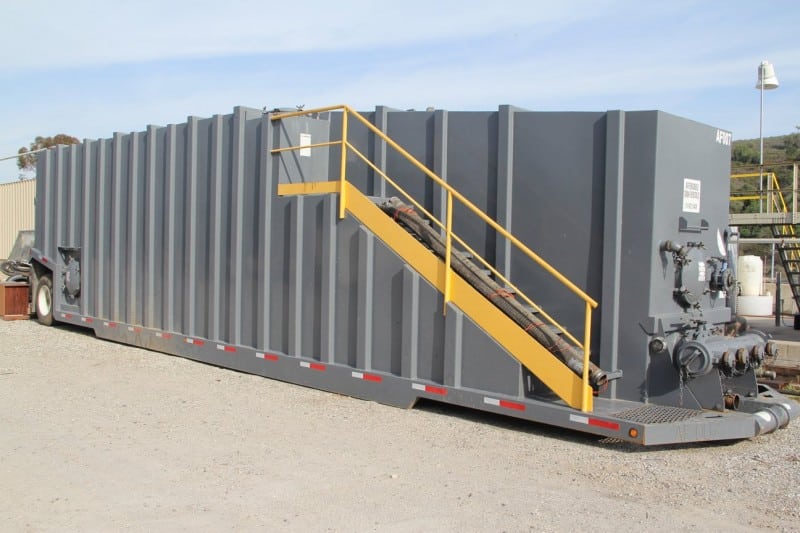

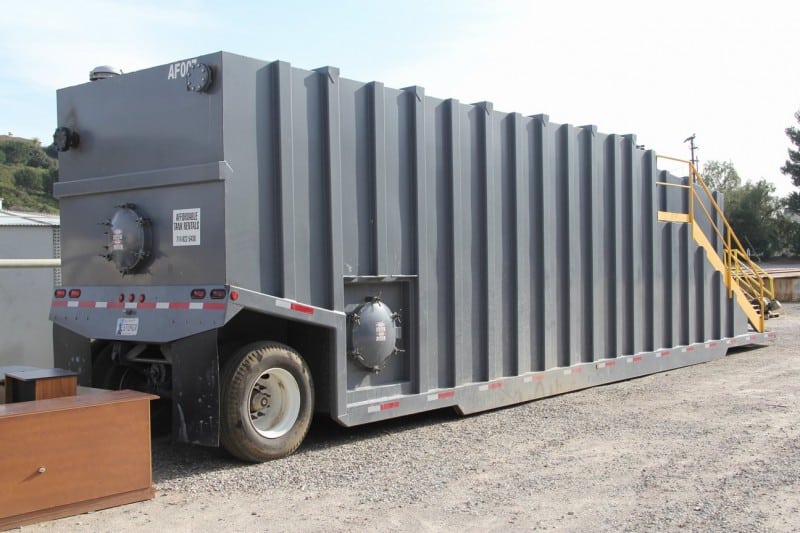

Frac Tank V bottom, float levels, no cross members, 2 access hatches for oil and water storage.

Our 500 bbl frac tanks are easy to use and easy to clean. They feature float volume levels, vapor tight valves, 3 access hatches, easy cleaning with v shaped bottoms and no cross members to get in the way, as well as smooth epoxy coated walls to prevent liquid contamination.

Affordable Frac Tank Rentals Selection

We deliver the highest quality frac tanks available for the best prices in the greater Los Angeles area. They are vapor tight,  and feature smooth walls and “v” bottoms for easy cleaning.

Specifications 500 bbl Portable Frac Tank

  • Capacity: 500 bbl (21,000 gallons)
  • Length: 45 ft. 2in.
  • Width: 102 in.
  • Height: 123.5 in.
  • Sides, Floor, Roof ¼” Plate – A36 Smooth Wall / No Internal Bracing
  • Weight: 31,000 lbs. (aprox)
  • V bottom floor design for easy clean out
  • Slip resistant side stairs with permanent railing.
  • Interior Paint: 100% Solids Epoxy – Gray (20 – 25 mils) Carboline 310
  • Exterior Paint: 4-6 Mils DFT Carboline
  • Fluid Gauge: Two Stainless Steel Floatballs
  • Manways: Three (3) – 20” Diameter – Roof, Front, Rear: One (1) – 25” Diameter on Side
  • Relief Valve: Blaylock Pressure/Vacuum Valve (16 oz.\in2 pressure – 0.4 oz.\in2 vacuum)
  • Valving: Three (3) 4” Butterfly Valves – Front Drain, Rear Clean-Out, & Mid-High Front Wall
  • Feed Line: 3” Front External Feedline with Cap, 3” Rear External Feedline with Cap
  • Flange Connections: (1) 4” Flange Connection on Roof, (1) 4” Flange Connection on Rear
  • 6″ Integral Manifold Header on Front Wall. Tanks can be manifolded together for large projects
  • Vapor tight
400 bbl baker type frac tanks rental for hazardous liquid storage grey water oil field

Our 400bbl stationary tank rentals are perfect for storing water, drilling and production fluids, tank bottoms and many other oil field and industrial uses in Los Angeles and Orange Counties.

Specifications 400 bbl Stationary Frac Tank

  • Capacity: 400 bbl (16,000 gallons)
  • Length: 35 ft.
  • Width: 8 ft.
  • Height: 8 ft.
  • Weight: 20,000 lbs. (aprox)
  • Guaging platform with permanent railing
  • Vapor tight
  • Interior Paint: 100% Solids Epoxy – Gray (20 – 25 mils) Carboline 310
  • Exterior Paint: 4-6 Mils DFT Carboline
  • Manways: Three (3) – 20” Diameter – Roof, Front, Rear
  • Relief Valve: Blaylock Pressure/Vacuum Valve (16 oz.\in2 pressure – 0.4 oz.\in2 vacuum)
  • Valving: Four (4) 4” Butterfly Valves – (2) Front with sump, (2) Rear with sump
  • Feed Line: 3” Rear External Feedline with Cap



ATR 500bbl Strapping Sheet link Cad drawing of ATR Frac tank linkSpecifications of ATR Frac Tanks
